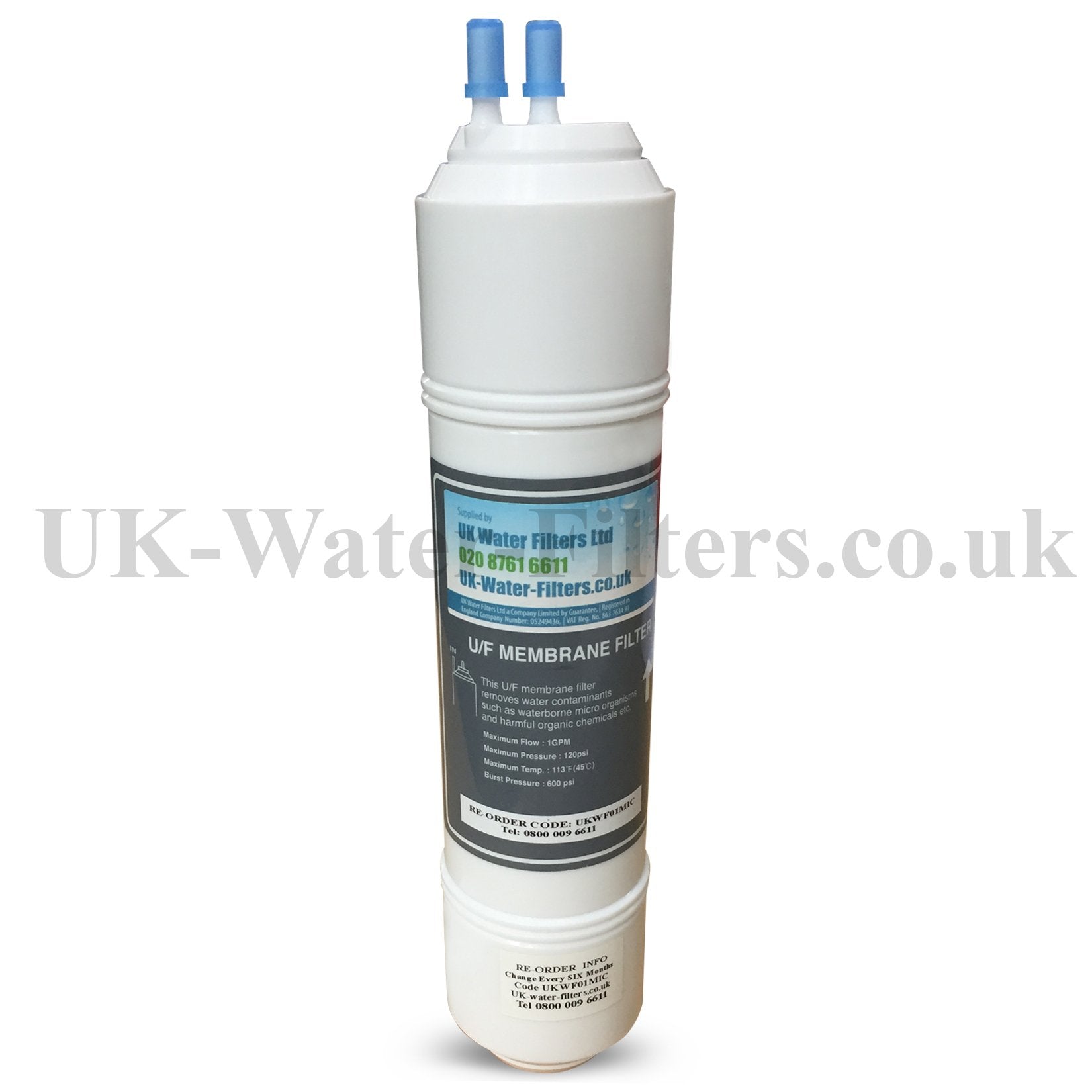

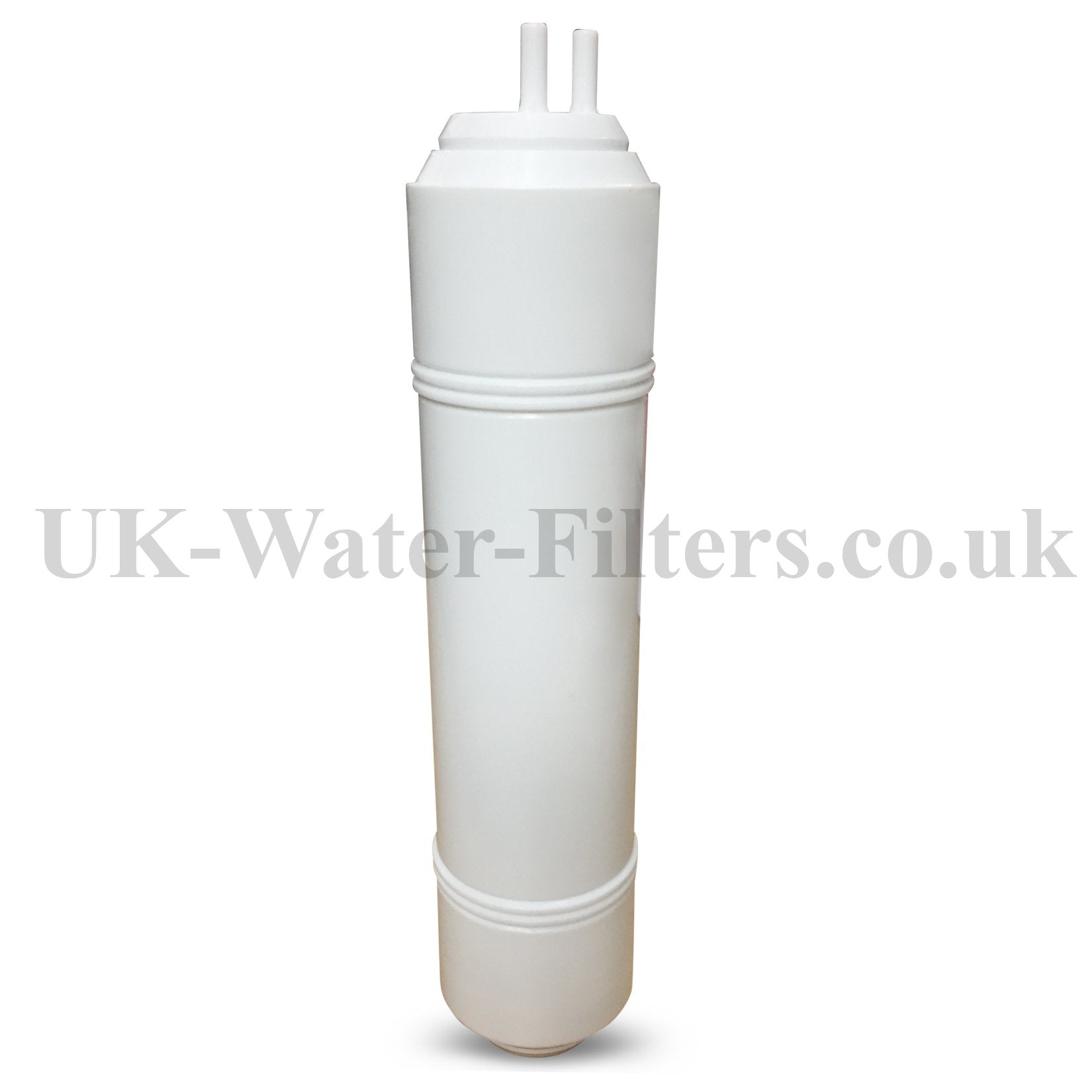

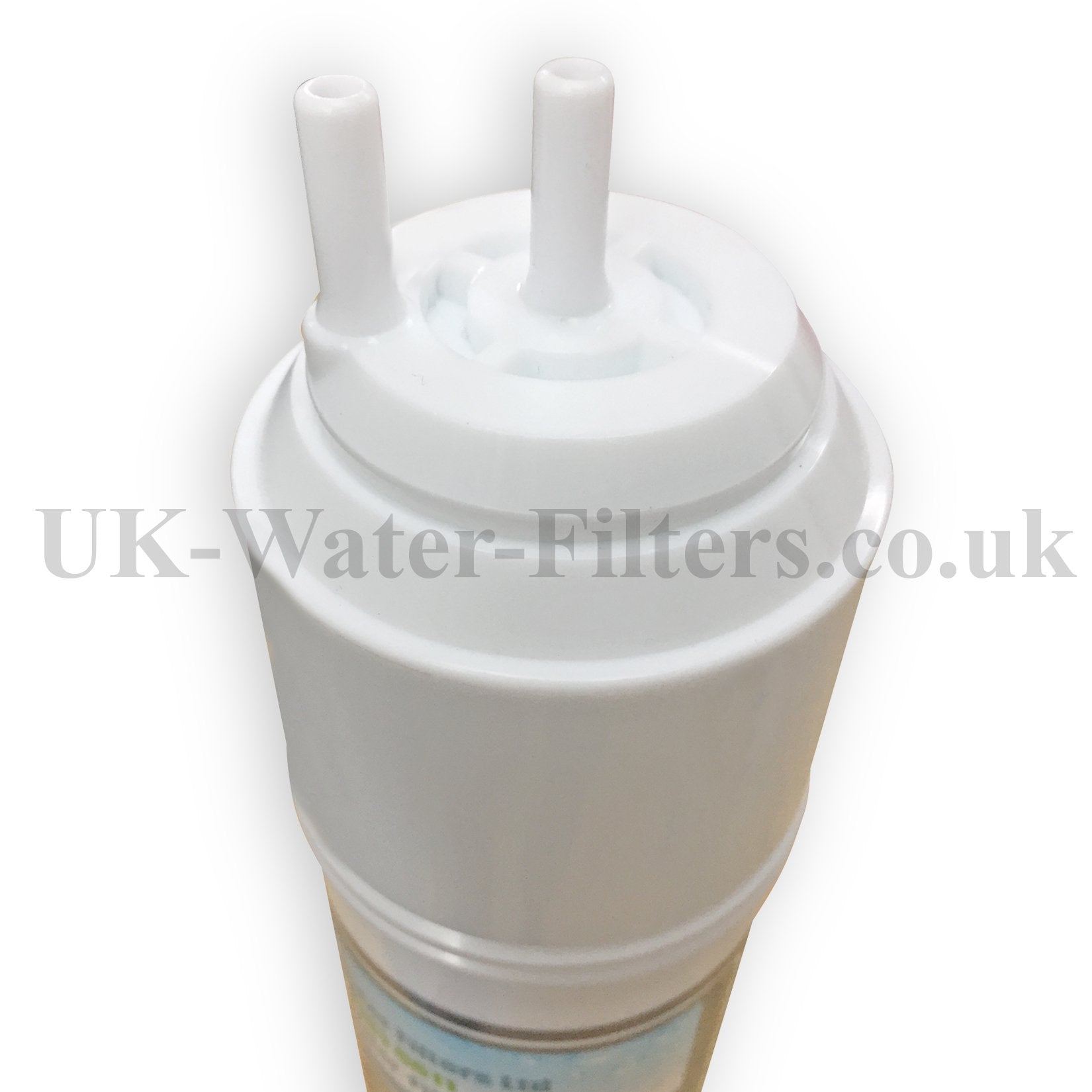

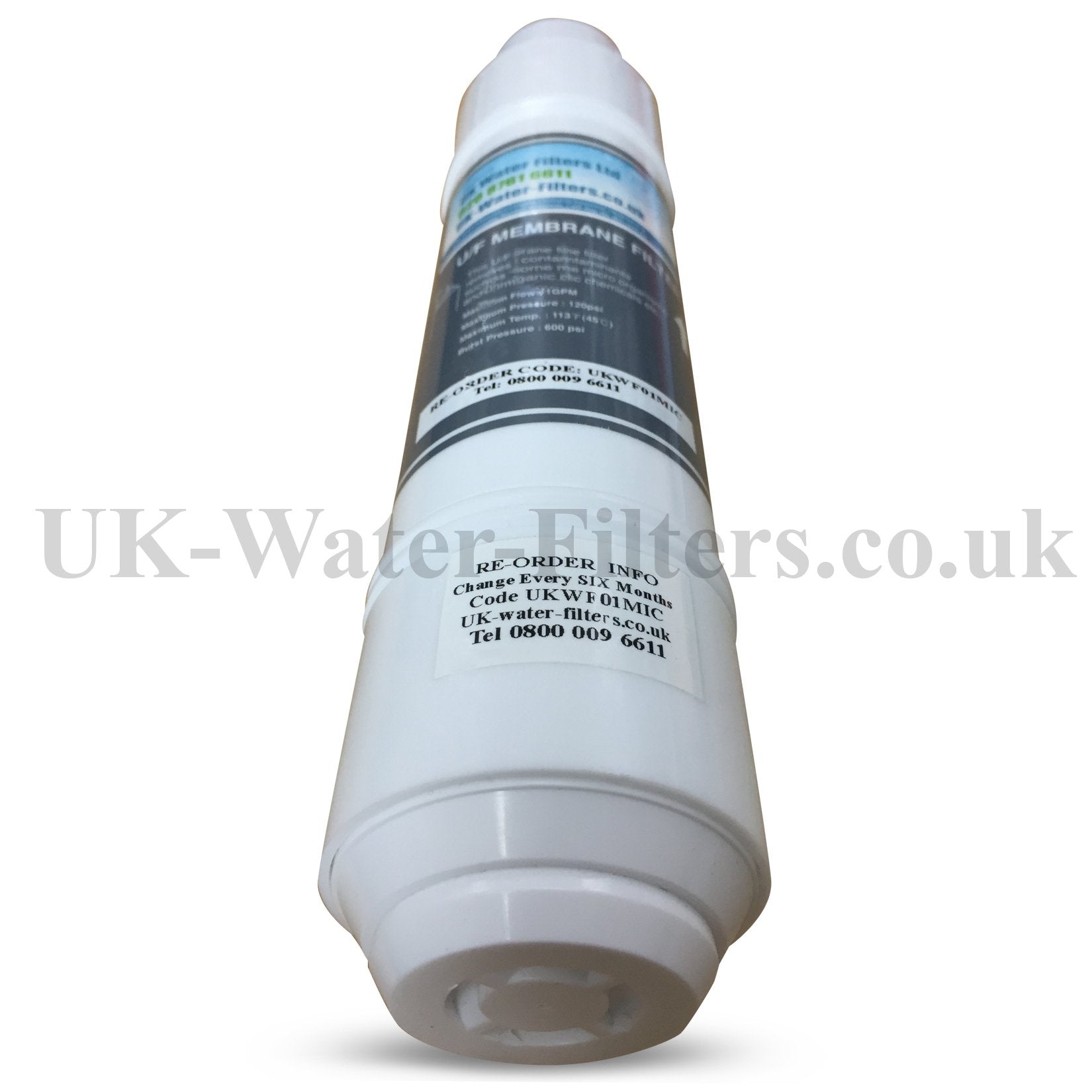

Ultrafiltration Water Filters - 0.1 Micron Filter Cartridge

A High Quality, Fully-Tested Product

Brand New. Straight From The Factory

Full Fitting Instructions Provided

Easy Installation - Friendly Support

Todays Price
£59.95INC VAT
In stock | Only 55 left at this price | Next Day Delivery
Free Delivery & Returns
Order before 3pm for same day dispatch today

"I always buy my water filters from this company. Price is good along with delivery. Good communication throughout. Brilliant company. I wouldn’t shop anywhere else."

C Andrews
UK Water Filters Promise
If you change your mind about your purchase, for any reason, within 90 days, you can return your product for a full and complete refund. PLUS we will pay for your return postage (UK)

All orders shipped same day before 3pm

Free Delivery & Free Returns

(We’ll even pay your postage!)

3 Year full parts warranty

What you get
Product Description

Replacement 0.1 Micron MicroFiltration Filter Cartridge for Canal Boats, Caravans and other uses

This is a very powerful sub-micron filter that filters out anything bigger than 0.1 microns.

One micron - aka a micrometer - is a unit of length equal to one-millionth of a meter - ie one-thousandth of a millimeter. (Micron is often used as a term of measurement in water filtration).

To give you an idea: a human hair is an average of 100 microns in diameter.

The smallest micro-organism, Mycoplasma can be as small as 0.3 microns

Anything bigger than 0.1 microns will be blocked by this filter.

This filter will protect against bacteria that might build up in your canal boat water tank - provided you've filled it with mains / potable water.

Important Note some viruses are smaller than 0.1 microns so don't use this to filter any raw water - see below.

What is Ultra Filtration

This is the ultimate in traditional barrier filtration - ie where particles cannot get through a mesh / barrier / wall.

Ultrafiltration is similar to nanofiltration, microfiltration, and reverse osmosis in that it is another type of membrane filtration whereby a semi-permeable membrane filters water with only one screen filter or barrier filter.

It is a self-contained, all-in-one way to purify water. It doesn't require any chemicals.

(It can also be used as a pre-treatment for reverse osmosis).

Ultrafiltration used to be primarily used for desalination but has become increasingly used to filter particulate materials, bacteria, and other microorganisms.

It results in very high water quality, without using chemicals, that is free of all the usual contaminants, and microorganisms found in raw water. (Raw water is any non-treated water from lakes, rivers, ponds, canals and rainwater).

What this UltraFilter Removes

  • Suspended solids
  • Bacteria
  • Some viruses (NB not all)
  • Endotoxins and other pathogens
  • Natural organic material
  • Silt

Important Note some viruses are smaller than 0.1 microns so don't use this to filter any raw water - see below.

Benefits of Ultra Filtration

  • Highly compact (eg much smaller than Reverse Osmosis)
  • Chemical-free process (No flocculate, coagulant, disinfectant or pH adjusting required)
  • Consistent particle and microbial removal (ie performance doesn't decline during filter life)

Get an Extra tap and Water Connection

Please note this is a standalone cartridge.

It does not include a tap or a connection to the water supply.

If you need those, no problem!

When you add this cartridge to your basket you will see an option to combine it with this standard undersink water filter system

To combine these, all you need to do is simply cut the supplied tubing - that comes with the extra undersink water filter system - with scissors and insert the ultrafiltration cartridge "inline" into the system.

You wilol also see an option to choose an extra three way tap instead of using the standard small water filter tap which comes with the undersink kit.

Can I Filter Raw Canal Water With This Filter?

No it should not be used to filter raw canal water because some viruses are as small as 0.02 microns.

Sewage-contaminated water can contain viruses which can lead to diseases like meningitis, hepatitis and gastroenteritis).

To remove these viruses you would need to consider using a Reverse Osmosis system. These can have a pore size of 0.0001 microns.

But even with an RO filter, if you wanted to filter raw canal water (ie any raw water which is likely to be badly polluted), to be totally safe, you'd also need to combine it with an Ultra Violet filter and several pre-filters (including this 0.1 micron Microfiltration cartridge).

If you're interested in working out a suitable combination for your needs please Contact us


With FREE Delivery

Immediate Dispatch

Purchase with Total Confidence

Money Back Guarantee

Click here for delivery information

No hidden extras

If you don't like what you get, send it back for a full no quibble refund.

If for any reason you decide to return your purchase we promise you a no questions asked THREE MONTH Money Back Guarantee. Click here to read the "large print" about our Money Back Guarantee.

PLUS We'll even pay your return postage !

Please order now to secure today's sale price.


Product Code: UKWF01MIC

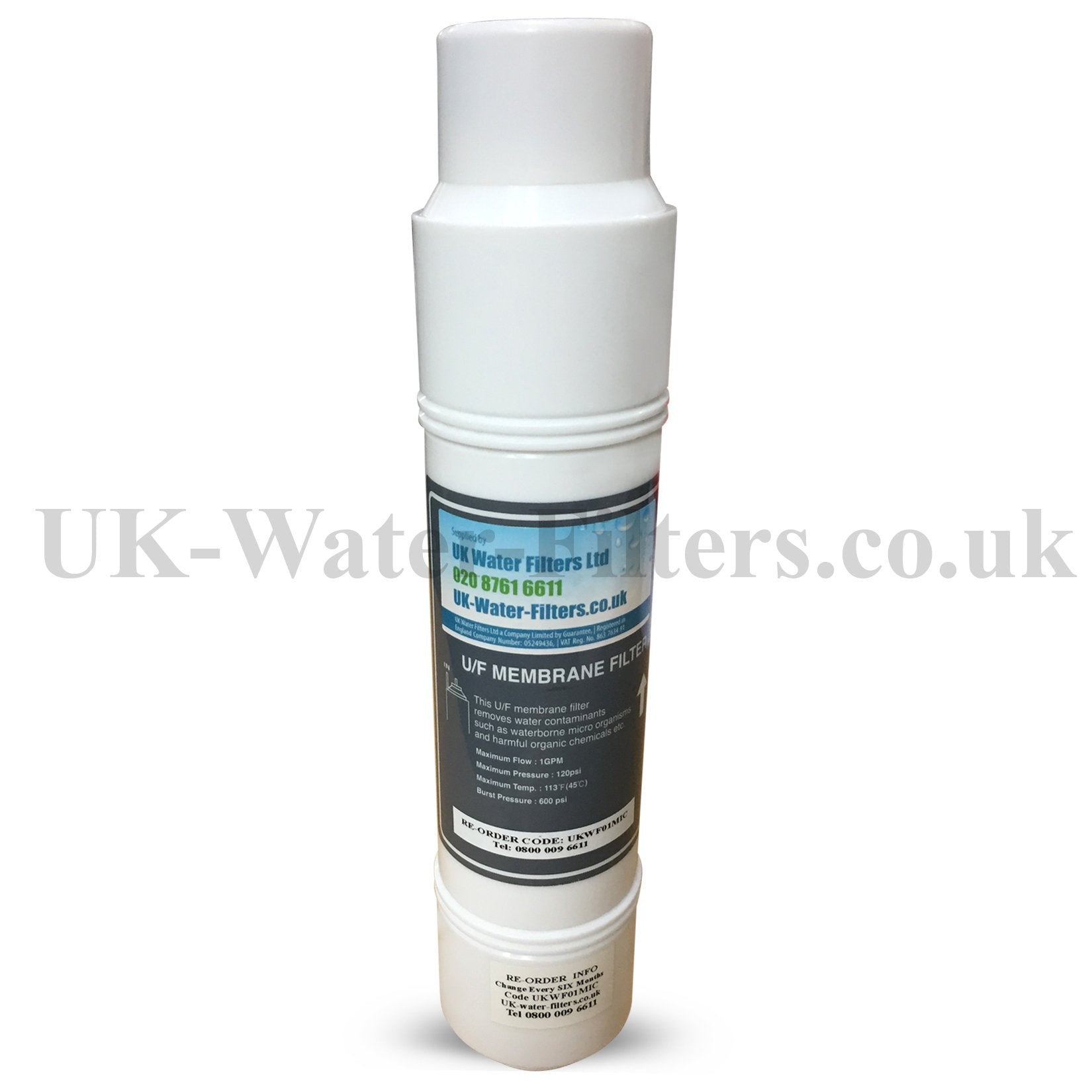

Membrane Ultrafiltration Cartridge with Cap On Front On
Technical Information


Diameter – 2.5 inches

Length – 12.5 inches

Connections – ¼ inch stem / accepts 1/4 inch OD pipe

Filtration media – UF polysulfone hollow fiber

Max flow – 3.7 Litres/minute

Max pressure – 120 psi / 8 Bar

Min pressure – 21 psi / 1.5 Bars

Max Feed Water Temperature – 113 ºF / 45 ºC

Breaking pressure - 600 psi / 42 Bar

Max turbidity – 0.2 NTU

Lifespan – 10,800 Litres

Changing the Cartridge

This filter cartridge needs to be changed after filtering 10,800 Litres or 6 months from the first time it was wet - whichever is soonest.

(If dry / unused the filter can be stored in a dark, cool, dry place for several years).

You would simply replace your filter with the same cartridge. No need to change the connections.

You can reorder from our website - or simply call us.

Technical Specifications

Materials: Polysulfone(PSF)

OD: Φ600μm

Thickness; 100μm

Average Pore Size: 0.1-0.2μm

MWC: 100000~150000 *

Shape: Hollow Fiber

Porosity: 0.75

Pure Water Flowrate: >3500L/h·m2·0.15 MPa·25?


UF membrane manufacturers classify their UF product as having a
specific Molecular Weight Cutoff (MWC). This is a rough measurement of
the size of contaminants removed by a given UF membrane.

A 100,000 MWC UF membrane means that when water containing a given
standard compound with a molecular weight of around 100,000 daltons is
fed to the UF unit, nearly all of the compound will not pass through the membrane.
